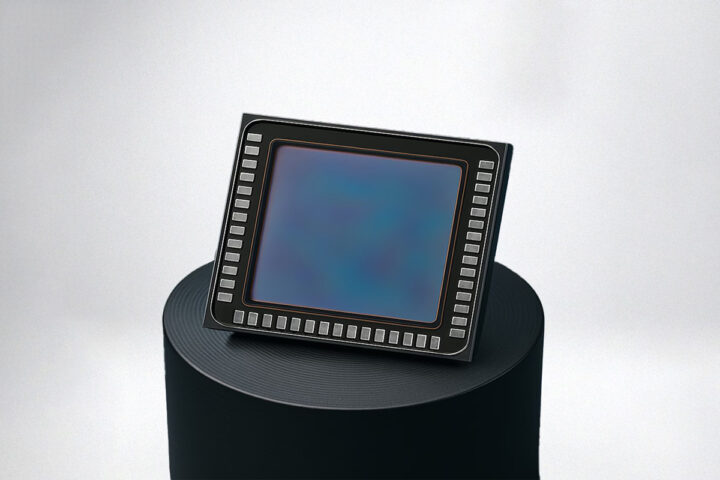

STMicroelectronics VD65G4 and VD55G4 are ultra-low-power 0.56-megapixel global shutter CMOS image sensors designed for battery-operated edge AI and always-on vision applications. The main difference between the two sensors is that the VD65G4 features a color RGB Bayer pattern, while the VD55G4 is a monochrome sensor designed to capture visible to near-infrared (NIR) light. Both sensors use a compact 1/9-inch optical format and a 2.16 µm pixel pitch, utilizing Back Side Illuminated (BSI), CDTI, and 3D stacking technologies to achieve a tiny 2.73 x 2.16 mm bare-die footprint. STMicro VD65G4 and VD55G4 specifications: Resolution â 0.56 MP (804 x 704) Chroma VD65G4 â RGB Bayer (RGGB). VD55G4 â Monochrome (Clear, Visible to NIR). Optical Characteristics â 1/9-inch (2.3mm) optical format with a 30° linear CRA and close to 1:1 aspect ratio. Pixel Technology â 2.16 µm x 2.16 µm pixel size utilizing global shutter, BSI, CDTI, and 3D stacking. Frame Rates […]
The post STMicro VD65G4 and VD55G4 0.56MP global shutter image sensors enable ultra-low-power always-on event-driven vision appeared first on CNX Software – Embedded Systems News.
